Why the Right Transformer Core Material Can Save Energy

Selecting the right transformer core material is crucial for energy efficiency. I’ve seen firsthand how different materials can significantly affect operational costs and performance. For example, using amorphous metal cores can reduce energy losses by 70-80% compared to traditional options. This choice leads to lower operating expenses and improved overall efficiency. By prioritizing the right core material, we can make a substantial impact on energy savings and long-term costs.

Key Takeaways

• Choosing the right transformer core material greatly reduces energy losses and saves money.
• Materials like CRGO steel and amorphous metal improve transformer efficiency by lowering core losses.
• Good core design and precise manufacturing help minimize energy waste and boost performance.
• High-quality materials increase transformer durability, leading to longer life and fewer failures.
• Investing in better core materials pays off with long-term energy savings and lower maintenance costs.

Types of Transformer Core Materials

When it comes to transformer core materials, I’ve encountered several options, each with unique benefits. Understanding these materials can help you make informed decisions that lead to energy savings.

CRGO Steel

Cold Rolled Grain Oriented (CRGO) steel is a popular choice for transformer cores. Its high permeability and low core loss make it ideal for reducing energy losses in electrical applications. I’ve seen how CRGO steel enhances magnetic flow, which improves transformer performance. The global demand for energy-efficient transformers has driven the growth of the CRGO steel market. As a result, manufacturers are continually improving its properties to meet modern energy efficiency standards. This material can significantly reduce magnetic losses, which account for 5-10% of all electrical power generated. By choosing CRGO steel, you can enhance your transformer’s efficiency and lower operational costs.

Amorphous Metal

Amorphous metal cores have revolutionized the transformer industry. I’ve found that these cores can reduce energy losses by up to 70-80% compared to conventional options. Their unique atomic structure allows for lower core losses, making them an excellent choice for energy-efficient transformers. A recent study showed that amorphous metal cores exhibit core losses that are approximately one-fifth of those found in CRGO cores. This means that not only do they save energy, but they also contribute to significant reductions in CO2 emissions. The environmental benefits alone make amorphous metal a compelling option for anyone looking to invest in energy-efficient technology.

Ferrite Cores

Ferrite cores are another excellent choice, especially for high-frequency applications. I appreciate how they minimize energy losses due to their high magnetic permeability and low hysteresis. This efficiency allows for smaller and lighter transformer designs, which can be a game-changer in many applications. While ferrite cores may not have the same saturation flux density as CRGO steel, their performance in high-frequency circuits is impressive. They generate less heat and improve overall performance, making them suitable for various electronic devices.

By understanding these transformer core materials, you can make choices that lead to better energy efficiency and lower costs.

Benefits of Transformer Core Materials

Choosing the right transformer core material brings numerous benefits that can significantly impact energy efficiency and overall performance. I’ve seen firsthand how these advantages translate into real-world savings and improved functionality.

Reduced Energy Losses

One of the most compelling benefits of advanced transformer core materials is their ability to reduce energy losses. For instance, I’ve learned that amorphous 3D wound core transformers can cut typical no-load losses by 60-70%. This reduction in core losses is crucial for energy conservation in power distribution networks. By using these advanced materials, we can meet stringent global energy efficiency regulations while also lowering operational costs. The impact is clear: less energy wasted means more savings for businesses and consumers alike.

Improved Performance

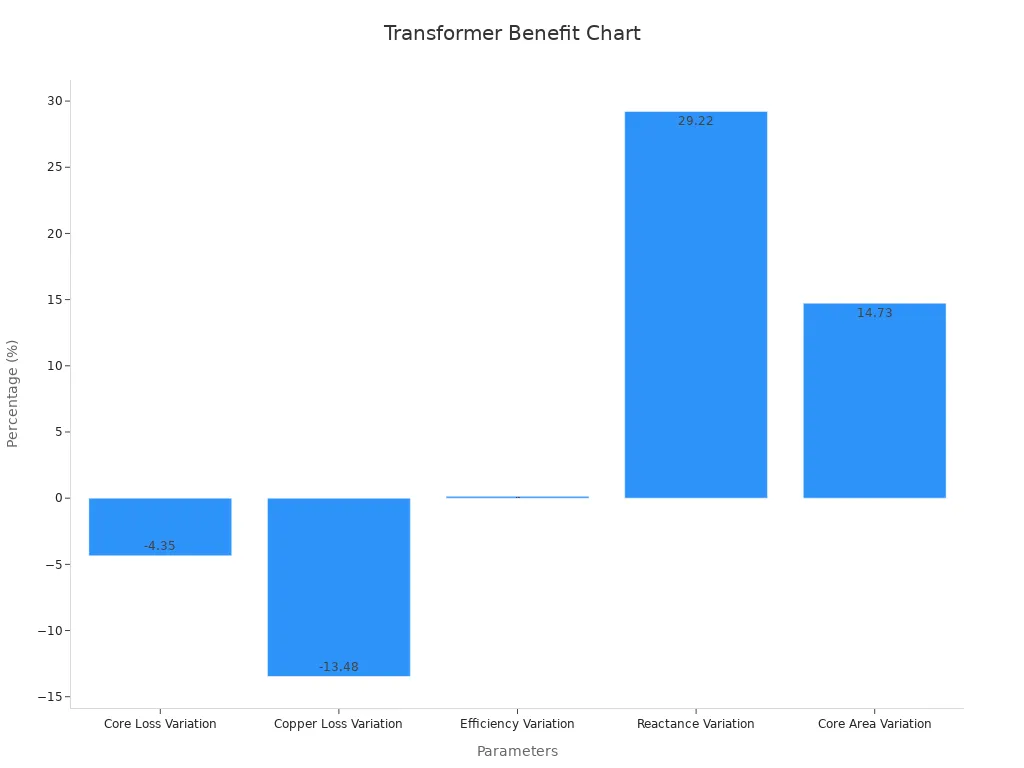

The performance of transformers directly correlates with the materials used in their cores. I’ve observed that advanced materials like Minnealloy exhibit the highest saturation magnetization among soft ferromagnets. This means they can transfer more power per cycle compared to traditional materials. The improvements in key performance indicators, such as energy efficiency and core losses, are significant. For example, using these advanced materials can lead to a 4.35% reduction in core losses and a 0.14% increase in efficiency. These enhancements not only boost the performance of transformers but also contribute to a more reliable power supply.

Longevity and Durability

Durability is another critical factor when selecting transformer core materials. I’ve come across impressive statistics that highlight the long-term benefits of using high-quality materials. For example, ELSCO transformers, which utilize superior insulation and robust designs, have reported zero failures since 1988. This durability stems from the use of advanced materials and manufacturing techniques that enhance the lifespan of transformers.

Here’s a quick overview of the durability statistics for different transformer life phases:

This data clearly shows that selecting the right transformer core materials leads to long-lasting, reliable performance. By investing in quality, we can ensure that our transformers operate efficiently for decades.

Core Design and Processing

The design and processing of transformer cores play a pivotal role in determining their efficiency. I’ve seen how thoughtful design choices can lead to significant energy savings. The right core design minimizes losses and enhances performance, making it essential for anyone looking to optimize their transformers.

Impact on Efficiency

Core design directly influences transformer efficiency. I’ve learned that different core materials and structures can lead to varying levels of core losses, which include hysteresis and eddy current losses. These losses can significantly affect overall performance, especially under light load conditions.

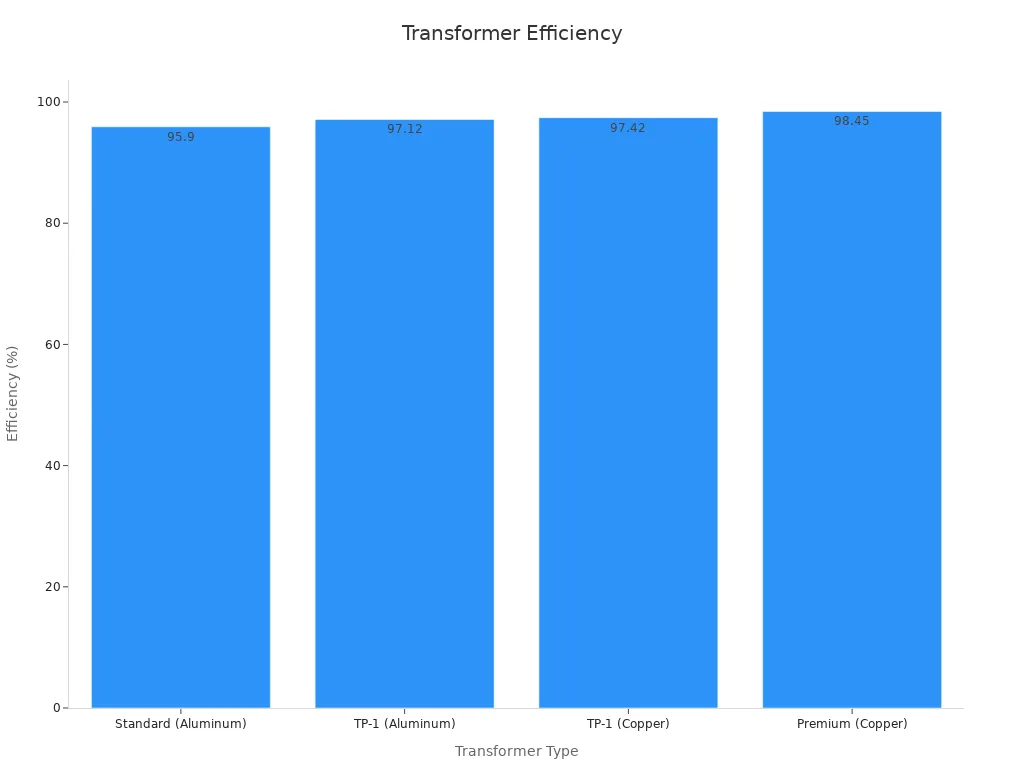

To illustrate this, consider the following table that summarizes the impact of core materials on transformer efficiency:

High-quality core materials, such as amorphous metals, significantly reduce core losses. I’ve found that these materials dominate at light loads, where copper losses are minimal. A 5% increase in voltage can cause a 10-15% rise in core losses, leading to about a 1% drop in efficiency. This highlights the importance of optimizing core design to minimize losses and improve performance across various load conditions.

Moreover, I’ve seen how the Finite Element Method (FEM) is extensively used to model transformers with different core designs. This method allows for accurate calculations of magnetic fields and core losses. Comparative studies using FEM help predict and minimize no-load losses and internal stresses, supporting the evaluation of transformer efficiency across different core types.

Manufacturing Techniques

The manufacturing techniques used in creating transformer cores also significantly impact their efficiency. I’ve observed that precision in lamination thickness and stacking tightness can reduce eddy current losses. This attention to detail ensures that the cores operate efficiently, especially in high-frequency applications.

Innovative manufacturing processes, such as dual-core designs, activate cores based on load demand. This approach improves efficiency, particularly at partial loads. I’ve seen how these advancements not only enhance performance but also contribute to energy savings.

Economic Implications of Transformer Cores

Cost-Benefit Analysis

When I evaluate the cost-benefit of transformer cores, I often find that investing in high-quality materials pays off significantly. For instance, using thinner core steel, like M3 steel, instead of M6 steel can drastically reduce no-load losses. This improvement boosts transformer efficiency and lowers operating costs. I’ve seen firsthand how these savings accumulate over time.

Experts agree that transformers made with premium-grade materials, such as those from ELSCO, can last over 30 years. In contrast, the industry average is only 15-20 years. This longevity means fewer replacements and lower overall costs. I believe that spending an additional $10,000 to $20,000 upfront on a high-efficiency transformer acts as a form of insurance. It prevents costly downtime and replacements, making it a smart financial decision.

Long-Term Savings

The long-term savings from selecting the right transformer core material are impressive. I’ve learned that energy-efficient transformers can save thousands of dollars throughout their lifetime. For example, amorphous core transformers can reduce energy losses by up to 70% compared to traditional silicon steel cores. This reduction translates directly into significant energy cost savings.

Moreover, these transformers require less maintenance, which further decreases operational costs. I’ve seen how businesses that invest in high-efficiency transformers enjoy not only lower energy bills but also enhanced reliability. The initial investment in quality materials is justified by the substantial savings and reduced maintenance needs over time.

In my experience, choosing the right transformer core is not just about immediate costs; it’s about making a decision that leads to long-term financial benefits.

Selecting the right transformer core material is essential for maximizing energy efficiency. I’ve seen how materials like CRGO steel and amorphous alloys significantly reduce core losses. Here are some key takeaways:

• CRGO steel enhances magnetic permeability, improving efficiency.
• Advanced joint techniques minimize losses and improve performance.
• Amorphous alloys offer low core losses but require careful processing.

By making informed decisions, you can achieve substantial energy savings and lower operational costs. Investing in quality materials today leads to a more efficient and sustainable future.
