The Pros and Cons of Dry-Type and Oil-Immersed Transformers

When it comes to selecting the right transformer, I often find myself asking: which type is better suited for specific applications? Dry transformers offer unique advantages, especially in environments where safety and maintenance are priorities. However, oil-immersed transformers excel in efficiency and load capacity. Understanding these differences can help you make an informed choice that meets your needs effectively.

Key Takeaways

• Dry-type transformers are safer and need less care. They are great for indoor use.
• Oil-immersed transformers can manage bigger loads and work better. They are good for outdoor places like substations.
• Think about the environment when picking transformers. Dry-type ones do not risk oil leaks.
• Check your needs, like load size and where to install, to choose the right transformer.
• Use tools like the Power Transformer Expert System to help pick a transformer.

Understanding Transformer Types

Definition of Dry-Type Transformers

Dry-type transformers use air as their primary cooling medium. They do not contain any liquid insulation, which makes them safer in many environments. I appreciate how these transformers are often used in indoor applications, such as commercial buildings and industrial facilities. Their design allows for easy maintenance and inspection.

Here are some key features of dry-type transformers:

• Low Maintenance: They require less upkeep compared to oil-immersed transformers.
• Safety: The absence of flammable liquids reduces fire hazards.
• Efficiency: They can achieve high efficiency ratings, often exceeding 98% for larger units.

According to industry standards, dry-type transformers can maintain impressive efficiency levels, as shown in the table below:

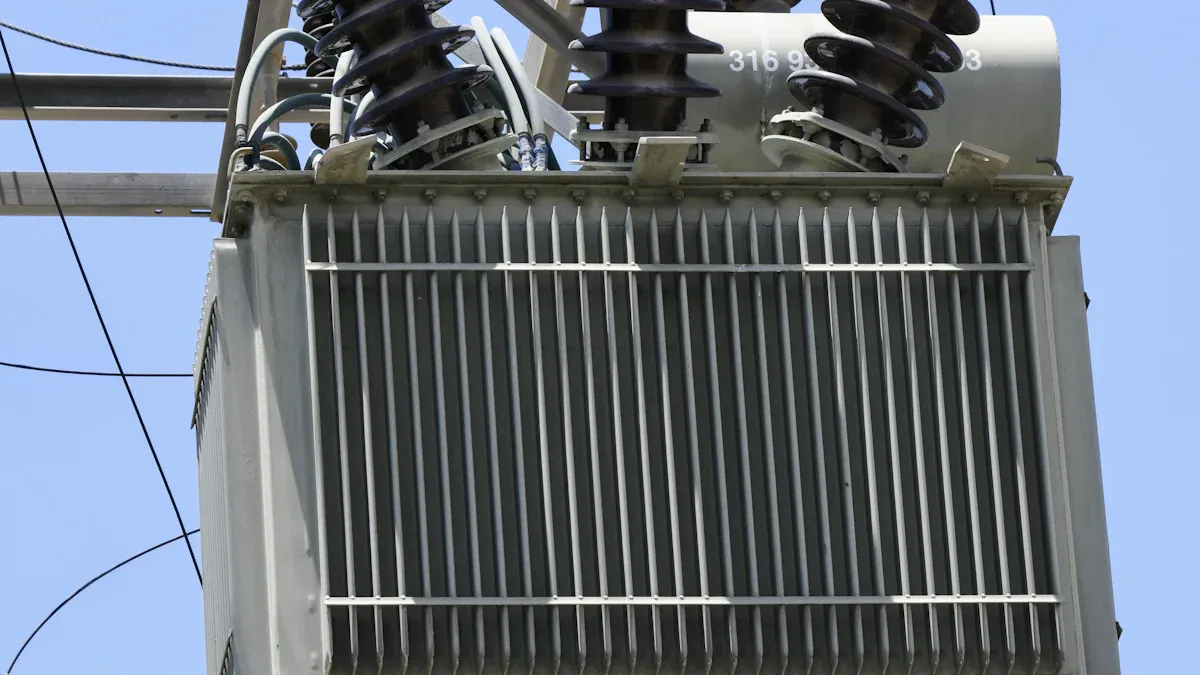

Definition of Oil-Immersed Transformers

Oil-immersed transformers, on the other hand, utilize oil for cooling and insulation. This oil absorbs heat generated during operation, allowing for higher load capacities. I find these transformers particularly useful in outdoor settings, such as substations and large industrial plants.

Key features of oil-immersed transformers include:

• Higher Load Capacity: They can handle larger electrical loads due to their efficient cooling.
• Longevity: The oil helps protect the internal components, extending the transformer's lifespan.
• Versatility: They are suitable for various applications, including high-voltage transmission.

Both transformer types serve essential roles in electrical systems. Understanding their definitions helps in making informed decisions about which transformer best fits specific needs.

Key Differences Between Transformer Types

Cooling Mechanisms

Cooling mechanisms play a crucial role in the performance of transformers. Dry-type transformers rely on air for cooling. This method is straightforward and effective, especially in environments where safety is a priority. I appreciate that these transformers can operate efficiently without the risk of oil leaks.

In contrast, oil-immersed transformers use oil as a cooling medium. The oil absorbs heat generated during operation, allowing these transformers to handle larger loads. However, I have learned that excessive heat can damage insulation and reduce the lifespan of oil-immersed transformers. A study highlights the importance of temperature regulation in these transformers, emphasizing how different insulating oils can impact their efficiency.

Insulation Methods

The insulation methods used in transformers significantly affect their performance and reliability. Dry-type transformers utilize solid insulation materials, which are less prone to degradation over time. This resilience means they require less frequent maintenance compared to oil-immersed transformers.

On the other hand, oil-immersed transformers rely on liquid insulation. While this method can provide excellent cooling, it also introduces potential risks. For instance, oil can degrade due to reactions like oxidation and hydrolysis, which can lead to partial discharge and affect transformer performance. Research indicates that monitoring these reactions is essential for maintaining efficiency in oil-immersed transformers.

Environmental Impact

When considering environmental impact, dry-type transformers have a clear advantage. They eliminate the risk of oil leaks, making them more environmentally friendly. I find this aspect particularly appealing for indoor applications where safety and ecological considerations are paramount.

In contrast, oil-immersed transformers pose environmental hazards due to their reliance on oil. A Life Cycle Impact Assessment (LCIA) methodology reveals that these transformers can have significant ecological effects throughout their life cycle. This comprehensive analysis allows for a clear comparison of how different transformer types affect the environment.

Advantages of Dry-Type Transformers

Safety Features

One of the standout advantages of dry-type transformers is their exceptional safety features. I find it reassuring that these transformers use non-flammable materials like epoxy resin. This significantly reduces the risk of fire, making them ideal for environments where safety is paramount. For instance, in a project at a paper mill, the use of dry-type transformers led to lower insurance premiums due to their enhanced fire safety.

Moreover, dry-type transformers exhibit better short circuit strength thanks to their solid insulation. I recall a data center project where this feature was crucial for maintaining a reliable power supply. Additionally, these transformers are designed to withstand high humidity and temperature fluctuations. I have seen them perform exceptionally well in tropical climates where oil-filled units often fail.

Maintenance Requirements

Another compelling advantage of dry-type transformers is their reduced maintenance requirements. I appreciate that cast resin transformers require minimal routine maintenance. In fact, many have operated for over a decade with only annual inspections. This reliability is a game-changer for facilities looking to minimize downtime and maintenance costs.

Furthermore, I have learned that amorphous core transformers show even lower maintenance needs due to their reduced losses and less heat generation. After five years of operation, they demonstrated no degradation in efficiency. This means that investing in a dry transformer can lead to long-term savings and peace of mind.

Installation Flexibility

Dry-type transformers also offer remarkable installation flexibility. I find it fascinating that they can be used in various applications, including mobile marine vessels, where they are required for ABS classification. Their versatility allows for floating facilities to utilize electrical power systems of 50-100 MW and voltages up to 13.8 kV.

The table below highlights some key findings regarding the installation options for dry-type transformers:

Additionally, I have seen the development of dry-type transformers for pole-mounted applications, allowing outdoor use without an enclosure. Extensive testing at the KIPTS outdoor test station in South Africa and in a salt-fog chamber has confirmed their safety and performance in harsh conditions. This flexibility makes dry-type transformers a smart choice for various settings.

Disadvantages of Dry-Type Transformers

Cost Considerations

While dry-type transformers offer many benefits, I cannot overlook their cost implications. In my experience, these transformers often come with a higher price tag compared to their oil-immersed counterparts. Several factors contribute to this increased cost.

For instance, the raw materials used in dry-type transformers, such as copper and silicon steel, significantly impact the overall price. Additionally, the capacity and voltage class of the transformer play a crucial role. Higher kVA ratings and voltage classes lead to increased costs.

I have found that advanced insulation and cooling methods also add to the overall price. Compliance with international certifications and standards can further inflate costs. Customization options, while beneficial for specific applications, can lead to higher expenses due to lower production volumes.

Here’s a breakdown of the key cost factors associated with dry-type transformers:

Load Capacity Limitations

Another disadvantage of dry-type transformers is their load capacity limitations. I have noticed that these transformers typically handle lower loads compared to oil-immersed transformers. This limitation can be a significant drawback in applications requiring high power levels.

For example, in large industrial settings or substations, the demand for electricity can exceed the capacity of dry-type transformers. I recall a project where we had to switch to oil-immersed transformers because the dry-type units could not meet the required load. This situation can lead to increased costs and project delays, which are not ideal for any operation.

Advantages of Oil-Immersed Transformers

Higher Efficiency

One of the most compelling advantages of oil-immersed transformers is their higher efficiency. I have seen firsthand how the use of mineral or synthetic oil as a cooling medium significantly enhances performance. The oil's excellent thermal conductivity allows for superior heat dissipation, which is crucial for maintaining optimal operating temperatures.

In fact, studies show that oil-immersed transformers can achieve slightly higher energy efficiency compared to dry-type transformers. Here’s a quick comparison:

This efficiency translates into lower operational costs over time. I find that many facilities benefit from reduced energy bills, making oil-immersed transformers a cost-effective choice in the long run.

Greater Load Capacity

Another significant advantage of oil-immersed transformers is their greater load capacity. I have worked on projects where the demand for electricity exceeded what dry-type transformers could handle. In these cases, oil-immersed transformers proved invaluable. They can manage high power and voltage levels, making them suitable for grid-scale applications.

The cooling methods used in oil-immersed transformers, such as ONAF (Oil Natural Air Forced) and OFWF (Oil Forced Water Forced), enhance their ability to handle larger loads. These methods allow for better heat management, which is essential in high-demand situations. Here are some key benefits:

• ONAF cooling combines natural oil circulation with forced air cooling, enabling the transformer to manage higher loads effectively.
• OFWF cooling utilizes pumps for oil circulation and water-cooled heat exchangers, providing superior cooling capacity for large transformers.
• Long-term studies indicate that transformers using these cooling methods often have longer operational lives due to their ability to maintain stable temperatures.

This capability to handle higher peak loads without needing to replace the entire transformer is a game-changer for utility capacity planning. I have seen how this flexibility allows facilities to adapt to changing energy demands without incurring significant costs.

Longevity

Longevity is another area where oil-immersed transformers shine. I have encountered many installations where these transformers have operated efficiently for 25 to 40 years with proper maintenance. The insulating oil not only cools the transformer but also protects its internal components, extending its lifespan.

Research supports these claims. For instance, accelerated life testing (ALT) provides insights into transformer insulation life under stress. Predictive modeling helps assess transformer health and predict lifespan based on various factors like load and temperature. Here’s a summary of findings from recent studies:

These studies highlight the durability of oil-immersed transformers, making them a reliable choice for long-term applications. I believe that investing in these transformers not only ensures consistent performance but also provides peace of mind for facility managers.

Disadvantages of Oil-Immersed Transformers

Environmental Concerns

Oil-immersed transformers come with significant environmental concerns that I cannot ignore. One of the most pressing issues is the risk of oil leaks. These leaks can lead to serious environmental damage, contaminating soil and water sources. I have seen firsthand how such incidents can affect local ecosystems and require costly cleanup efforts.

Here are some key points regarding the environmental risks associated with oil-immersed transformers:

• Dissolved Gas Analysis (DGA): This method detects gases like Hydrogen (H2) in transformer oil, which can indicate potential faults. Regular DGA testing helps assess the condition of the insulating liquid and ensures environmental safety.
• IEC Standards: The DGA process follows international standards, including various physicochemical tests to evaluate the oil's dielectric strength and moisture content. These tests are crucial for maintaining transformer health and minimizing environmental impact.
• Impact on Power Quality: Studies show that uncertainties in wind power generation can affect power quality indicators. This can pose safety threats to transformers, emphasizing the need for constant monitoring of voltage deviations and load rates.

I believe that these environmental concerns should weigh heavily in the decision-making process when selecting transformers. The potential for oil spills and their consequences can lead to long-term ecological damage.

Maintenance Challenges

Maintenance challenges also pose a significant disadvantage for oil-immersed transformers. I have learned that these transformers require regular upkeep to ensure optimal performance. Neglecting maintenance can lead to severe issues down the line.

Here are some common maintenance challenges I have encountered:

• Winding Checks: Regular checks are crucial. In one case, routine resistance tests revealed an imbalance that could have led to a short circuit if left unchecked.
• Bushings: Neglected bushings can cause failures. I recall a situation where a hairline crack allowed moisture to enter, resulting in a flashover.
• Tap Changer Issues: Worn contacts in tap changers can lead to voltage regulation problems. Identifying these issues during maintenance can prevent costly downtime.
• Core Grounding: An ungrounded core due to a loose connection can increase losses. I have seen how essential it is to perform core grounding checks regularly.
• DGA Monitoring: Sudden increases in acetylene levels detected through DGA can signal impending failures. Early intervention can save significant repair costs.
• Dielectric Strength: Low dielectric strength due to moisture ingress can lead to insulation damage. Addressing these issues promptly is vital for transformer longevity.
• Oil Acidity: Routine testing revealed a rapid increase in oil acidity, indicating a sealing problem that accelerated oxidation. Timely repairs can extend the transformer's life.
• Furan Analysis: This analysis helps estimate the remaining life of older transformers, allowing for proactive replacement planning.

These maintenance challenges highlight the importance of regular inspections and testing. I find that investing time and resources into proper maintenance can prevent costly failures and extend the life of oil-immersed transformers.

Applications of Each Transformer Type

Ideal Uses for Dry-Type Transformers

I find dry-type transformers particularly well-suited for various applications due to their safety features and low maintenance requirements. Here are some ideal uses:

• Urban and Commercial Buildings: I often recommend dry-type transformers for residential complexes, shopping centers, and office buildings. Their low maintenance and fire safety make them a perfect fit for these environments.
• Industrial Facilities: In my experience, these transformers provide reliable power solutions while eliminating environmental and safety issues related to oil cooling. They work well in factories where safety is a top priority.
• Renewable Energy Projects: I have seen dry-type transformers commonly used in wind farms and solar installations. Their emphasis on environmental protection and ease of maintenance aligns perfectly with the goals of renewable energy.

Ideal Uses for Oil-Immersed Transformers

Oil-immersed transformers excel in applications requiring high load capacities and efficiency. Here are some scenarios where I find them particularly beneficial:

• Utility Substations: I often see these transformers in utility substations, where they manage high voltage and large power loads efficiently.
• Heavy Industrial Applications: In industries like mining and manufacturing, oil-immersed transformers handle significant electrical demands. Their ability to dissipate heat effectively makes them ideal for these environments.
• High-Voltage Transmission: I have worked on projects involving long-distance power transmission, where oil-immersed transformers play a crucial role in maintaining voltage levels and minimizing losses.

Selection Guide for Transformers

Choosing the right transformer can feel overwhelming. I’ve learned that several factors can guide this decision. Here are some key considerations:

Factors to Consider

1. Number of Phases: Decide between single-phase or three-phase transformers based on your equipment needs.
2. Environment: Assess the operational environment. Is it indoors or outdoors? Will it face extreme weather?
3. Input/Output Relationships: Understand the operational requirements and maintenance needs of the transformer.

Additionally, consider these technical specifications:

• Kilovoltampere (kVA) Rating
• Voltage Ratings, Ratio, and Method of Connection
• Insulation Temperature Ratings
• Sound Levels

These factors help ensure that the transformer meets your specific requirements.

Tip: Utilize decision support tools to assist in selecting the appropriate transformer type. For instance, the Power Transformer Expert System (PTX) offers analytics for transformer fleet management. It improves diagnostic performance and usability.

Making the Right Choice

When making your final decision, I recommend evaluating the following:

1. Task-Specific Considerations: Different transformers excel in various applications. Choose one that aligns with your specific needs.
2. Available Datasets: Access to reliable performance data can significantly influence your choice.
3. Resource Efficiency: Consider the transformer’s size and operational costs.

By weighing these factors, you can confidently select a transformer that meets your operational demands and budget. Remember, the right choice can lead to long-term savings and enhanced performance.

In summary, I see clear distinctions between dry-type and oil-immersed transformers. Dry-type transformers excel in safety and maintenance, making them ideal for indoor applications. On the other hand, oil-immersed transformers shine in efficiency and load capacity, particularly in outdoor settings.

Key Differences: - Dry-type transformers reduce cable costs and lower electrical losses. - Oil-immersed transformers are more cost-effective for outdoor setups and handle higher MVA ratings.

As we move forward, I believe the future of transformer technology will focus on modernization and reliability. The rise of renewable energy sources demands advanced transformers for effective integration. Government initiatives are pushing for infrastructure upgrades, enhancing the resilience of our power distribution networks. Embracing these trends will ensure we meet the evolving energy demands of tomorrow. 🌍
