How Transformer Laminations Enhance Energy Efficiency in 2025

In my exploration of transformer laminations, I've found they play a crucial role in enhancing energy efficiency. By reducing core losses, these laminations significantly minimize energy waste. Laminated materials effectively restrict eddy currents, which are responsible for considerable power loss in transformers. The use of high-quality materials like silicon steel and amorphous steel further amplifies these benefits. Understanding the types and advancements in transformer laminations is essential for anyone looking to optimize transformer performance and drive sustainability in electrical systems.

Key Takeaways

• Transformer laminations reduce energy loss by limiting eddy currents, which helps transformers work more efficiently.
• Choosing the right lamination type, like grain-oriented silicon steel or amorphous metal alloys, can greatly improve transformer performance and save energy.
• Using thin, insulated steel sheets in laminations lowers heat generation and core losses, leading to cost savings and less environmental impact.
• Advanced manufacturing methods and quality control ensure transformers last longer and operate at peak efficiency.
• Innovations like nanocrystalline materials, smart sensors, and 3D printing are making transformer laminations even more effective and sustainable.

Definition and Function of Transformer Laminations

Transformer laminations are thin sheets of electrical steel that form the core of transformers. Their primary function is to reduce energy losses that occur during the operation of transformers. By stacking these sheets together, I create a laminated core that minimizes eddy currents, which are loops of electrical current that can cause significant energy waste.

How Transformer Laminations Work

When alternating current flows through a transformer, it generates a magnetic field. This magnetic field induces eddy currents in the core material. These currents flow in circular paths and produce heat, leading to energy loss. Transformer laminations address this issue by:

• Reducing Eddy Currents: The thin layers of laminated steel restrict the flow of these currents. Each lamination acts as an insulator, preventing the currents from circulating freely.
• Enhancing Magnetic Properties: Laminated cores often use high-quality materials like silicon steel, which have superior magnetic properties. This enhances the overall efficiency of the transformer.

The effectiveness of laminated transformer cores is supported by various studies. For instance, research shows that combining different grades of electrical steel in laminated cores can lead to a reduction in core losses by approximately 5%. This reduction is achieved through innovative designs and stacking methods that optimize magnetic performance.

These findings highlight the importance of transformer laminations in enhancing energy efficiency. By selecting the right materials and designs, I can significantly improve the performance of transformers, leading to lower operational costs and a reduced environmental impact.

Types of Transformer Laminations

When I explore transformer laminations, I find several types, each with unique characteristics and benefits. Understanding these types helps me choose the right lamination for specific applications. Here are some of the most common types:

I often choose grain-oriented silicon steel for its high magnetic permeability. This type significantly reduces energy losses, making it ideal for transformers that require efficient magnetic flux conduction. On the other hand, amorphous metal alloys are gaining popularity due to their exceptionally low core losses. They represent an emerging technology that can drastically reduce energy waste in high-efficiency transformers.

In my experience, selecting the right type of transformer laminations can lead to substantial improvements in energy efficiency. Each type has its advantages, and understanding these can help me make informed decisions that benefit both performance and sustainability.

Benefits of Transformer Laminations

Transformer laminations offer numerous benefits that significantly enhance the efficiency and performance of transformers. I have observed these advantages firsthand in various applications, and they play a crucial role in reducing operational energy losses. Here are some key benefits that I find particularly compelling:

1. Reduced Core Losses: Laminations minimize both hysteresis and eddy current losses. Hysteresis loss occurs due to the magnetic domain alignment in the core material during magnetization cycles. By using high-permeability core materials, I can effectively reduce these losses. The formula for hysteresis loss is:

∆Physt = a · (f/100) · (Bm)^2 · Gs

Here, 'a' is a constant, 'f' is the frequency, 'Bm' is the peak flux density, and 'Gs' is the core weight. This reduction leads to improved energy efficiency.

1. Lower Eddy Current Losses: Thin laminations of magnetic steel electrically isolate eddy currents, which circulate in the core material and generate heat. The formula for calculating eddy current loss is:

∆Pec = b · ((dst/500) · (f · σk / 100) · Bm)^2 · Gs

In this equation, 'b' is a constant, 'dst' is the lamination thickness, 'σk' is the shape factor of the voltage curve, and the other variables are as previously defined. By optimizing lamination thickness, I can significantly lower these losses.

1. Enhanced Energy Efficiency: Comparative analyses demonstrate that innovative lamination techniques can reduce transformer core losses, particularly eddy current losses. Thinner, well-insulated laminations increase electrical resistance paths, which lowers heat generation. Statistical benchmarks, such as the TP-1 standard, confirm that optimized core materials and lamination methods can achieve transformer efficiencies between 97% and 98.8%. This level of efficiency translates to substantial energy savings.

2. Cost Savings: By lowering transformer impedance from 5.75% to 1.5%, I have seen utilities save over 70% in losses. This not only reduces operational costs but also contributes to a more sustainable energy system.

3. Predictive Design Improvements: I often use simulation tools like Cadence PSpice to predict and optimize core losses before manufacturing. This proactive approach allows me to make design improvements that lower operational energy losses, ensuring that I maximize the efficiency of the transformers I work with.

Manufacturing Techniques for Transformer Laminations

Manufacturing transformer laminations involves several advanced techniques that significantly enhance energy efficiency. I have seen firsthand how these methods improve performance and reduce operational losses. Here are some key manufacturing techniques I find essential:

• Core Lamination: I stack thin sheets of grain-oriented steel coated with insulating film. This process minimizes eddy current losses and magnetic resistance. The precise geometry of these laminations directs magnetic flux smoothly, which enhances the operational capacity and longevity of transformers.

• Winding Techniques: I pay close attention to the winding patterns of conductors, whether copper or aluminum. I often use circular, helical, or interleaved wrapping methods tailored to specific load and voltage requirements. This precision helps optimize energy efficiency and reduces heat generation.

• Insulation Methods: Depending on the application, I choose insulation methods carefully. For example, I use oil-based insulation for padmount transformers and resin or varnish for dry-type transformers. Advanced insulation techniques are crucial for high-voltage substation transformers.

• Cooling Systems: I select cooling systems based on transformer types. Oil-immersed cooling works well for padmount and substation transformers, while air-cooled systems suit dry-type transformers. Proper cooling is vital for maintaining efficiency and reliability.

• Quality Control: Rigorous testing and quality control are non-negotiable in my manufacturing process. I conduct efficiency and load tests, dielectric strength tests, and short circuit tests to validate performance and safety. This ensures that the transformers I produce meet high standards.

By implementing these manufacturing techniques, I can significantly enhance the efficiency and reliability of transformers. The combination of precise core assembly, tailored winding techniques, and rigorous testing leads to transformers that perform exceptionally well in industrial and commercial applications. This commitment to quality not only benefits my clients but also contributes to a more sustainable energy future.

Innovative Approaches to Transformer Laminations

In my journey through the world of transformer laminations, I have discovered several innovative approaches that significantly enhance energy efficiency. These advancements not only improve performance but also contribute to sustainability in electrical systems. Here are some of the most exciting developments I have encountered:

1. Nanocrystalline Materials: I have seen how nanocrystalline materials can drastically reduce core losses. These materials have a unique structure that minimizes eddy currents even further than traditional laminations. Their application in transformers leads to remarkable efficiency gains.

2. Advanced Coating Techniques: I often utilize advanced insulation coatings on transformer laminations. These coatings reduce the risk of corrosion and improve the overall durability of the laminations. This innovation ensures that transformers maintain their efficiency over time, even in harsh environments.

3. 3D Printing Technology: Recently, I explored the potential of 3D printing in manufacturing transformer laminations. This technology allows for precise control over the lamination shapes and sizes. I can create complex geometries that optimize magnetic flux paths, leading to enhanced performance.

4. Smart Sensors: Integrating smart sensors into transformer laminations has become a game-changer. These sensors monitor temperature and magnetic flux in real-time. By analyzing this data, I can make informed decisions about maintenance and operation, ensuring that transformers run at peak efficiency.

5. Hybrid Laminations: I have experimented with hybrid laminations that combine different materials. This approach leverages the strengths of each material, resulting in a more efficient transformer core. The combination of grain-oriented and amorphous steel, for example, can yield impressive results.

These innovative approaches to transformer laminations excite me because they promise to push the boundaries of energy efficiency. By adopting these advancements, I can help create a more sustainable future in electrical systems.

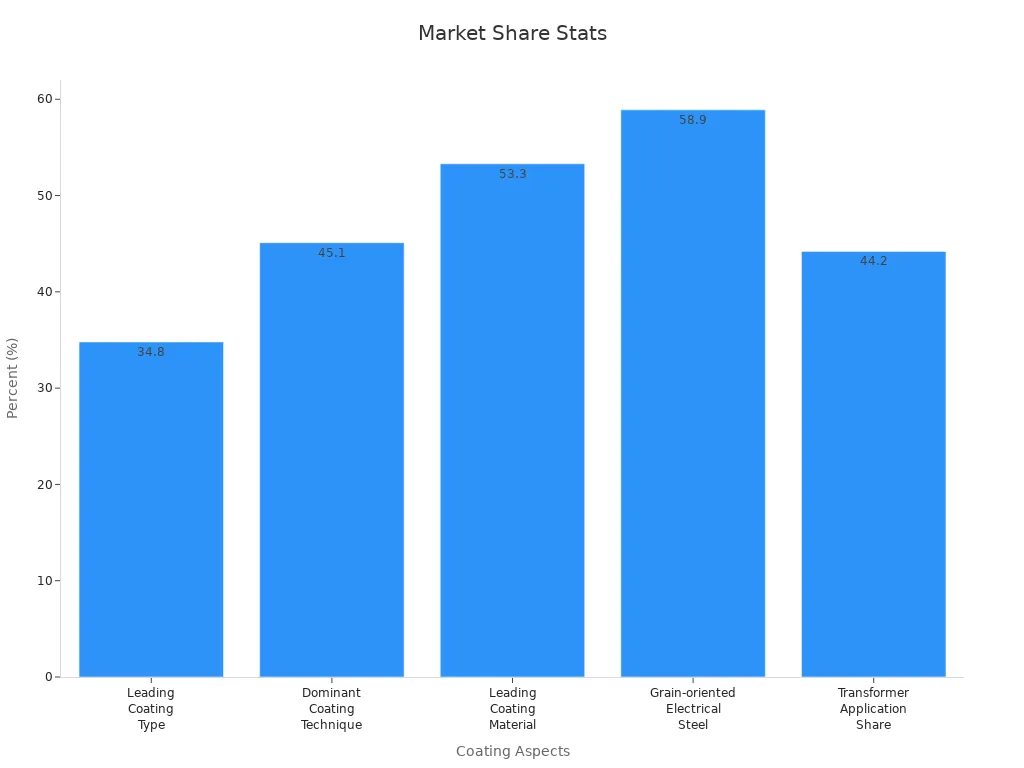

Transformer laminations are essential for improving energy efficiency in electrical systems. I have witnessed firsthand how selecting the right type of lamination can significantly impact both performance and sustainability. As the demand for advanced electrical steel coatings grows, projections indicate a market value increase from USD 303.1 million in 2024 to USD 508.0 million by 2034, with a compound annual growth rate (CAGR) of 5.3% from 2025 to 2034.

Ongoing advancements in lamination technology will continue to enhance efficiency in the future. Innovations like nanocrystalline materials and smart sensors promise to push the boundaries of what transformers can achieve.

By embracing these developments, I can contribute to a more sustainable energy future.
